| Weight | .4 kg |
|---|---|
| Dimensions | 13 × 9 × 10 cm |

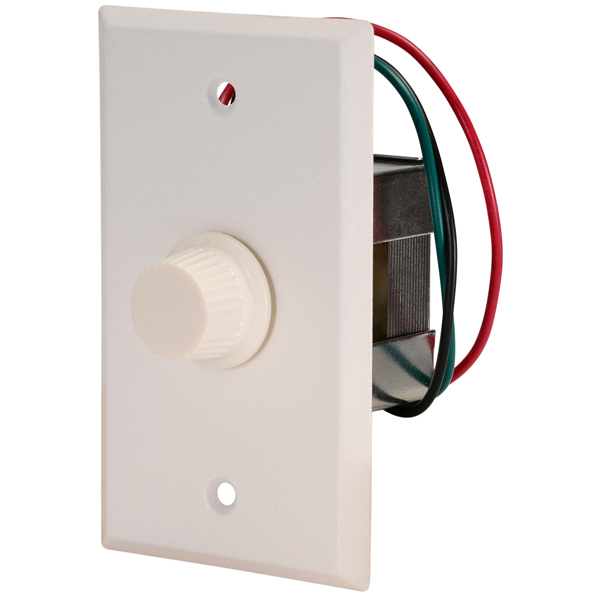

20 Watt 70V/25V Attenuator
DESCRIPTION
The VOX-AT20P is a UL Listed, single-gang, 20W, ten-step, continuous rotary, audio level attenuator with an OFF position used to attenuate audio power to any number of loudspeakers, up to 20W load. For use with 25V or 70V distributed audio systems.
OPTIONAL ACCESSORIES
Features
Specifications
Documentation
Features
- White metal faceplate
- White knob
- UL Listed 813 Commercial Audio Equipment – When installed in accordance with supplied instructions and connected to supply circuits in accordance with ANSI/NFPA70, NEC, and AHJ.
Specifications
| Power Rating: | 20W Continuous |
| Attenuation (Ref: 25V, 70.7V line): | Position 10: Full Signal, Position 9 to 3: -3 dB each, Positions 2 to 1: -6 dB each, Position 0: No Signal |
| Insertion Loss: | <0.5 dB |
| Audio Connection: | 10” long, pre-cut, color coded leads |
| Installation: | Single-gang electrical box, 2-1/8” (D) |
| Environment: | Indoor |
